Comprehensive Bat and Habitat Monitoring for Central Texas Bridge Replacement Projects
Project Location:
Central Texas
Project Owner:
TxDOT
Project Type:
Transportation / Bridge
Services Provided:
Acoustic species surveys
Bat population and maternity colony monitoring
PIT tagging and long-term individual tracking
Roost habitat and microclimate assessment
Artificial roost design
Bat exclusion and relocation
Post-construction monitoring
Water Quality Assessment and
BMP Development
Comprehensive Bat and Habitat Monitoring for Central Texas Bridge Replacement Projects
Project Overview
Zara Environmental conducted multi-year bat studies to support three Central Texas bridge replacement projects occupied by large bat colonies, including maternity roosts. The work spanned pre-construction studies, habitat design, exclusion and relocation, and long-term post-construction monitoring. TxDOT needed to replace bridges occupied by large bat colonies, including maternity roosts, without harming the populations or delaying construction. The challenge was to support relocation efforts while designing a study to understand colony dynamics, develop suitable alternative habitat, and monitor long-term outcomes.
Zara evaluated colony dynamics, roost characteristics, species diversity, and water quality impacts to help TxDOT protect established bat populations while advancing construction. Findings from the studies also informed the design and management of artificial roosts incorporated into the replacement structures.
Zara’s Contribution and Innovative Approach
Zara employed a suite of advanced monitoring techniques to evaluate bat colonies prior to bridge demolition. The team pioneered the use of passive integrated transponder (PIT) tags for Brazilian free-tailed bats, enabling long-term tracking without affecting bat health. Population estimates were generated using still photography, bat traps, and PIT data, confirming seasonal peaks and identifying maternity activity at Lampasas Bridge. Zara also conducted detailed habitat mapping and microclimate analysis, revealing warm, enclosed roosting conditions within bridge gaps—insights used to design artificial bat houses. Acoustic surveys confirmed seven bat species across sites, supporting photographic data and highlighting species diversity. Water quality monitoring detected guano-related impacts downstream, prompting runoff mapping and mitigation strategies. Prior to demolition, Zara led bat exclusion and relocation efforts by sealing bridge gaps and manually relocating bats to newly installed bat houses on the replacement structures.
Project Success
Zara’s science-based approach enabled TxDOT to protect wildlife while keeping construction on schedule. Thousands of bats were safely excluded and relocated to newly installed artificial roosts. Key findings included:

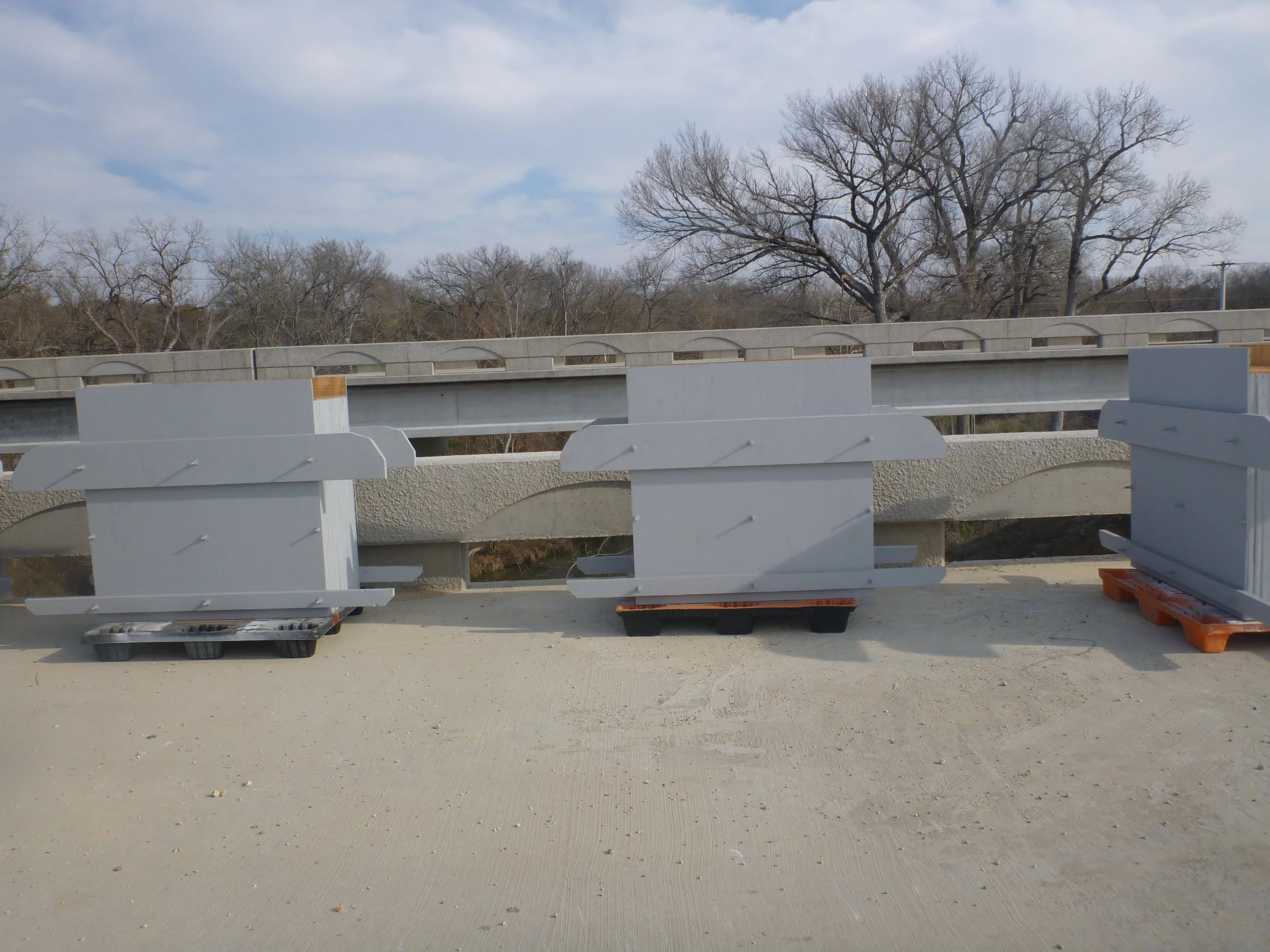

Artificial bat houses provided comparable or greater habitat volume than the original bridge structures, confirming their value for habitat mitigation.
Bat traps revealed how bats “stack” within roost gaps, improving the accuracy of population estimates.
PIT tag monitoring confirmed long-term survival (up to six years) and demonstrated no negative effects on bat longevity or site fidelity.
Roost switching was observed, with PIT-tagged bats from Lampasas Bridge later detected at Salado Bridge following habitat removal.
Year-round activity was recorded at the new bat houses, including winter use, suggesting some Brazilian free-tailed bats overwinter in Central Texas.
Species composition shifted post-relocation, with acoustic surveys indicating increased presence of big brown, hoary, and silver-haired bats.
Water quality impacts from guano were successfully mitigated through BMPs like stormwater diversion and routine guano removal.
Our Impact
Zara’s expertise in bat ecology, advanced monitoring, and habitat mitigation was key to the successful relocation and long-term conservation of bat populations alongside major infrastructure upgrades. Projects like this show that conservation and development don’t have to be at odds, there’s room for both. By bridging the gap between ecological stewardship and project delivery, Zara helps clients meet environmental responsibilities without sacrificing progress.
